Digital Image Correlation (DIC) Software and Systems

Digital Image Correlation (DIC) software is used with dedicated video systems to deliver enhanced measurement of stress, movement and vibration from tiny test samples to complete bridges, towers and even trees! Depending on the specific measurement software module employed, detailed analysis of material movement can be recorded and that data fed back for design verification and revision or just for reporting on structural integrity as part of a wider investigation.

Digital Image Correlation is an incredibly powerful tool and can be provided as part of dedicated video systems for quick installation to enable measuring to commence without an extended setup and calibration process.

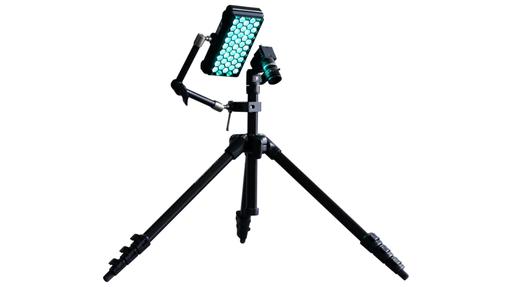

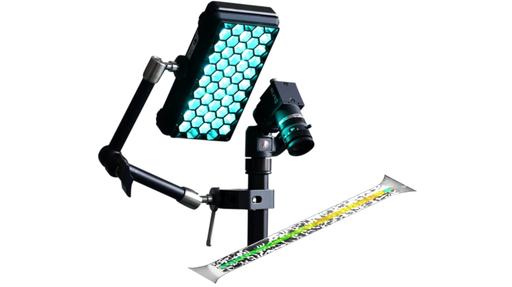

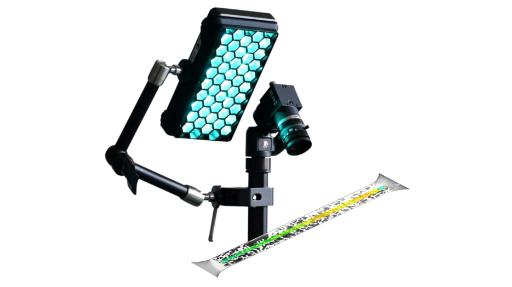

2D DIC systems are ideal for determining elongation/contraction, bending/extension, multiaxial deformation, extension/shear, strain localisation and full field deformation.

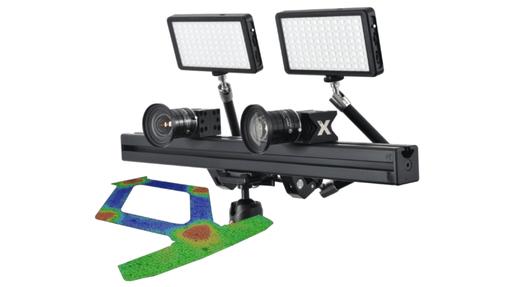

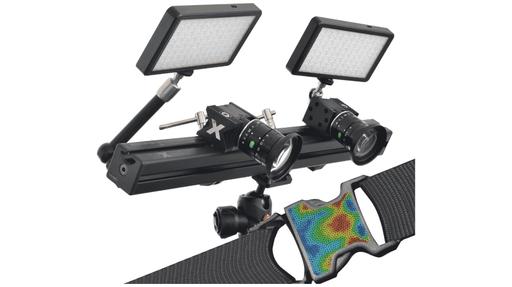

3D DIC systems are ideal for determining residual stress, vibration, strain concentration, deflection, motion, adhesion, extension/compression, deformation and crack propagation.

For further information please contact us to discuss your needs.

2D DIC Systems

3D DIC Systems
