DP Series 3/2 & 5/2 Spool Valves

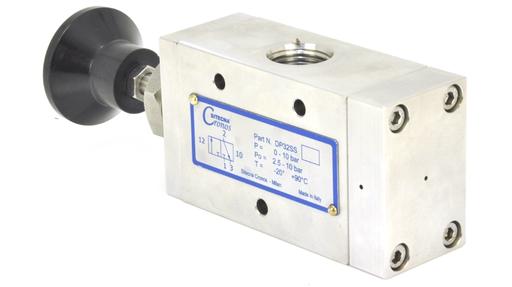

Sitecna DP Pneumatic Spool Valves

The Sitecna DP 3/2 & 5/2 valve range combine rugged construction, high flow rates and comprehensive certification to deliver optimum performance in harsh conditions. Precision machined from solid 316L stainless steel, the DPvalve range is ideal for use in valve automation systems and pneumatic control systems where corrosion resistance and high flow is crucial.

• 316L Stainless Steel

• ATEX, GOST EAC & Ex

• SIL3 on pilot operated valves

• -0.9-10bar

• Minimum pilot pressure 2.5bar


For environments where explosion risk is important, the DP range carries ATEX and GOST Ex certification as standard. In addition, the pilot operated versions of the DP valves have been tested and certified by TUV Rheinland to be compliant with IEC 61508 Functional Safety Level 3 for safety instrumented systems where reliability and extended working life is critical for plant safety.

DP valves have NPT threads as standard in sizes from 1/4″ to 3/4″ for pressures up to 10bar. There are manual reset variants of the DP range for failsafe automation functions. Find out more here.

Sitecna manufacture all their products in Italy to strict quality controls with full material traceability.
