P02 2″-12″ Pilot Operated Pressure Reducing Valve for Liquids

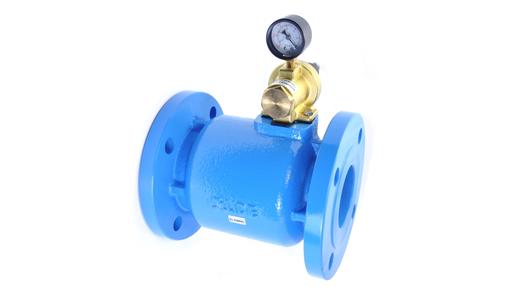

P02 Series Pressure Reducing Valve

The P02 series pressure reducing valve is a well proven pilot piston design from Z Tide, ideal for liquids. The P02 shares a common body, with the reducing pilot mounted on the body. External pipework is eliminated with this method which reduces external leakage and the risk of damage from the installation.

  • Reducing range: 1-7 Bar, 4-12 Bar
  • Body pressure range: 0.3-22bar (stainless steel body)
  • Choice of body: Bronze, cast iron, ductile iron, 304 stainless steel & 316 stainless steel
  • DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250 & DN300 flanged PN16
  • Elastomer: VITON

The P02 BTR BFR is ideally suited for process automation control and many general purpose applications involving liquids. The reducing valve pilot can be replaced or the internal parts very quickly on site. Contact us for service kits and advice.

Data Sheet
