C28 1/4″ 3/2 Universal 0-10bar IP65 IP67 Exd

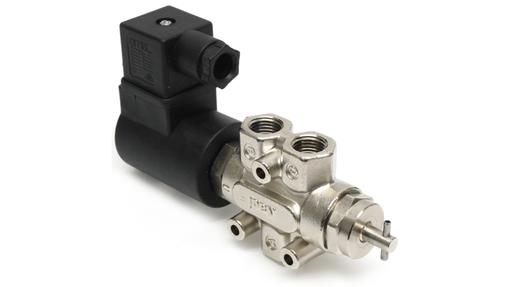

C28 Series Solenoid Valve

The C38 series three way universal solenoid valves manufactured by Nadi Srl in Italy offer reliable operation in a compact valve format. They are available in brass or stainless steel bodies with 1/4″ BSP or NPT threads and suitable for gaseous media only.

  • Pressure range: 0-10bar
  • Brass or Niploy Plated Brass bodies
  • 316 Stainless Steel bodies: temporarily suspended from production. Ask for more details
  • 1/4″ BSP or NPT ports
  • Coils to suit all common voltages. 12, 24, 48, 110, 220VAC or DC
  • Special voltages upon request
  • 4 different elastomer choices: EPDM, HNBR, NBR & VITON
  • Two manual override options: Push button (brass only) or turn screw (brass or stainless steel)
  • IP65, IP67 & ATEX Ex d

The C28 is ideally suited for process automation control in both safe areas and hazardous area locations. High dependancy actuator control for pneumatic applications, together with compact dimensions, allows the C28 to be used in the most demanding of installations. The C28 can be panel mounted. The valve can be serviced on site and overhaul kits are available for this.
