BX41 Two Way Normally Closed Solenoid Valve Position Feedback 1/2" to 4"

BX41 Series Solenoid Valves

The BX41 series is a two way normally closed solenoid valve with a position feedback limit switch fitted as standard. Available in both brass, 304 stainless steel or cast iron, the BX41 is ideal for applications where the position of the valve, either open or closed, can be monitored at the user's BMS panel. Port sizes range from 1/2" to 2" in both brass, 304 or 316 stainless steel bodies. Cast iron bodies are available with flanged ends, 2 1/2", 3" and 4". A wide selection of elastomers includes NBR, EPDM or VITON. Operating pressures of 0-7bar for sizes up to 2" and 0.5-6bar for 2 1/2" to 4".

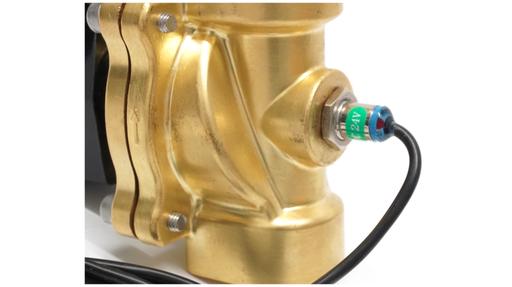

  • Position feedback switch with LED indicator, 2m cable
  • Switch current consumption: ≤15mA, Switch load current consumption: 200mA
  • Sensor output type: NC. The LED (RED) lights up when the solenoid valve is open
  • Suitable for water, liquids, air etc.
  • Media temperature: -10°C to +70°C
  • Two way normally closed, Lift assisted pilot
  • Brass, 304 or 316 stainless steel or cast iron body (2 1/2” to 4”)
  • NBR, VITON or EPDM seals
  • IP65 protection (coil), IP68 (position switch)
  • #410 solenoid coil 220VAC. #510 solenoid coil 24VDC
The BX41 is ideally suited for process automation and building maintenance control where the valve position state is of importance, with the signal being fed to a BMS system. The LED indicator is also easy to view for site inspections. The valve can be serviced on site with overhaul kits available from Measure Monitor Control.

Data Sheet

BX42 Normally Open Datasheet

Buy Now
