In complex process automation and instrumentation systems, proper interpretation of valve symbols on piping and instrumentation diagrams (P&IDs) is essential. MMC supplies valves and instrumentation to demanding industrial environments, so our clients benefit from engineering drawings that accurately represent what is required on-site. This guide explains what valve symbols mean, how to interpret them in a P&ID, and why knowing them improves specification, installation, and maintenance results.

Why Valve Symbols Matter

Valve symbols are far more than simple icons. They form a standardised “engineering shorthand” that communicates: the valve type (e.g., ball, gate, globe), its actuation method (manual, pneumatic, electric), operational state (normally-closed/open), and sometimes special features (block & bleed, pressure relief, check) etc. A mis-read symbol can lead to incorrect specification, incorrect installation, failure to meet safety requirements or inappropriate maintenance regimes.

This universal language enables engineers, instrumentation experts and maintenance personnel to collaborate effectively across disciplines and geographies.

Basic Valve Symbol Types

Here follows a summary of how commonly encountered valves are represented, and what MMC customers should note when seeing them on drawings:

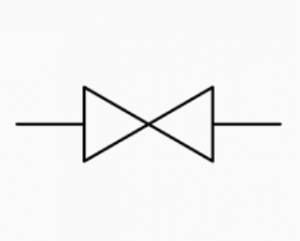

Gate Valve: Symbol typically shows two angular wedge shapes or a gate element. Indicates simple on/off service, minimal throttling.

Ball Valve: Usually depicted as a circle (ball) within the line or a quarter-turn symbol. Used for rapid on/off, high integrity shut-off.

Globe Valve: Shown with a spherical or “globe” bottle-shape in the symbol — often for flow regulation rather than pure isolation.

Check (Non-Return) Valve: Often an arrow or flapper inside the symbol indicating direction of permitted flow; prevents back-flow.

Butterfly Valve: Represented by a cross or disc-shape within the pipe line symbol; common in large bore or low pressure systems.

Safety/Relief Valves: Special symbols with a spring or setpoint marker and arrow indicating relief path; critical for overpressure scenarios.

Actuation, Operational States & Special Features

Beyond valve type, P&ID symbols often indicate:

  • Actuation method: Manual lever, electrical (solenoid), pneumatic/hydraulic, motorised — each has a distinct representation.
  • Default state: “Normally closed” (NC) or “normally open” (NO) when de-energised or de-actuated. For example: an NC valve symbol typically has a line/arrow showing it is closed in the default state.
  • Combined functions: e.g., block & bleed valves (isolate + vent), pilot-operated valves, 3-way diverter valves etc. These may include secondary ports or additional symbols.
  • Special service conditions: e.g., high-pressure, cryogenic, ATEX/hazardous area ratings. While often not shown in basic symbol form, the drawing legend or specification notes will reference these; MMC often supplies valves to these exacting specs.

Reading P&IDs with Valve Symbols

To effectively read a P&ID where valve symbols appear:

  1. Locate the legend/key: The drawing should include a symbol legend showing what each graphic means in that specific document.
  2. Identify the valve symbol: Note the body shape, ports, additional markings (arrows, triangles, squares) which denote valve type and actuation.
  3. Check flow direction and ports: Especially important for multi-port or diverter valves. The symbol may show arrows or numbering for ports.
  4. Look for actuator / default state indicators: Is it electronically actuated? Is it spring-return? Is it NC or NO?
  5. Refer to specification notes: Often a note next to the symbol references valve material, pressure rating, certification (e.g., ATEX), or temperature range. MMC emphasises verifying that the symbol aligns with the physical / process requirements.

By decoding the P&ID correctly, engineers can ensure that the valve delivered and installed matches the intended function avoiding mismatches such as a manual valve being specified where remote actuation is required, or a valve with insufficient pressure or temperature rating being used.

Why Understanding Valve Symbols Helps with Specification & Maintenance

  • Specification accuracy: When engineers understand the symbol, they can translate into correct product selection (body material, actuation, rating). MMC’s role is often to assist with this translation.
  • Installation clarity: Installers can check that the correct valve is installed in the correct orientation (e.g., flow arrow direction) and with correct actuator mounting.
  • Maintenance planning: Symbols indicating special features (e.g., bypass, check function, block & bleed) signal maintenance needs seals, springs, venting points, etc. MMC’s clients benefit when the drawing clearly reflects these.
  • Safety & regulatory compliance: Symbols for safety valves or hazardous-area rated valves alert both design and maintenance teams to critical components. Mis-interpretation may lead to non-compliance.

Conclusion

Valve symbols on P&IDs may appear simple, but they contain a wealth of information, including the type of valve, method of actuation, default state, special functions, and service conditions. Mastery of this language is required for the proper design, specification, maintenance, and safety of industrial systems. Engineers ensure that what is drawn is what is installed by understanding and verifying the symbols, and that the installed valve performs as expected.
