PCN 2/2 Normally Closed or Normally Open Solenoid Valve 3/8"-4", 0.5-12bar IP65, IP67

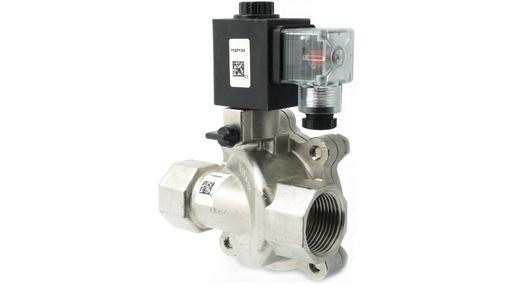

PCN Series Solenoid Valve

The PCN series two way normally closed or normally open solenoid valves manufactured by Uflow-Automation offer reliable operation in a compact valve format. The PCN solenoid valve highlights:

  • Body materials are 304 stainless steel, or 316 stainless steel for corrosion resistance for food industries, pharmaceuticals, chemical applications and highly corrosive environments
  • Threaded port sizes are 3/8″-4" BSP or NPT
  • Flanged ports are also available to PN16
  • Suitable for gaseous and liquid media with pressures from 0.5-12bar
  • High pressure version is available up to 20bar
  • Seal material options are NBR, VITON or EPDM
  • Manual override option is available for the normally closed version
  • Anti-water hammer version is available upon request
  • Solenoid coils offer high reliability and are unaffected by voltage surges. With a locking mechanism in 4 x 90 degree positions, the coils can easily be replaced

The PCN series is used in the following applications:
  • Chemical industries
  • Textile processing equipment
  • Oil & Gas (petrol, diesel, kerosene) flow on/off applications
  • Water treatment plant (membrane flushing applications)
  • Building management services (building automation – automatic overhead tank filling with pressure booster systems)
  • Building management systems (chilling water supply – on/off applications)
  • Combustion equipment (LPG vaporiser on/off applications)
  • Air dryer (air on/off applications)
  • Cleaning/laundry/kitchen equipment
  • Injection moulding machine (cooling water on/off applications)
  • Pharma-machinery (bottle/vial washing machine)
  • Irrigation
  • Automatic car wash (vehicle wash) equipment

Data Sheet
