1.5" & 2" Filter Models 251, 212, F320

Model 251: F15M 1.5" & F20M 2" Brass Filter

This item has been superseded by Model 120F2

The model 251 range of brass filters from ID Insert Deal Srl are suitable for use on air, gas or liquids for pressures up to 30bar with the manual condensate drain for compressed air or 50bar with the hex cap on all other fluids. This filter unit is available in 2 sizes: F15M 1.5" or F20M 2" and NPT threads are optional. Filter element options are 50 microns or 5 microns, both in 316L stainless steel. This filter complies with PED and can be supplied with ATEX or EAC-Ex certification for hazardous area duty. There is an automatic drain option for compressed air duty up to a maximum of 16bar.

Common fluids used with this filter are Oxygen (O2), Nitrogen (N2), Argon (Ar), Helium (He), Carbon Dioxide (CO2), Nitrous Oxide (N20), Compressed Air, Water and Hydraulic Oil. FDA approved seals are available for food and beverage compliance.

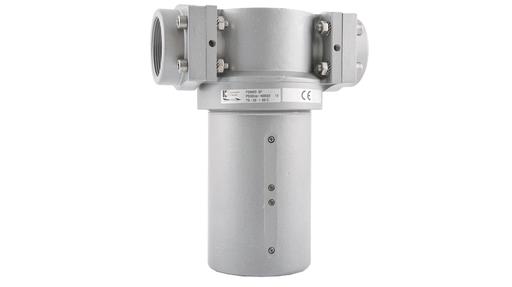

Model 212: F15MD 1.5" & F20MD 2" Aluminium Filter

This item has been superseded by Model 220F2

The model 212 range of aluminium alloy modular filters from ID Insert Deal Srl are suitable for use on compressed air for pressures up to 30bar with the metal bowl, manual drain and no level indicator or 16bar with level indicator and either automatic or semi automatic condensate drains. This filter is available in 2 sizes: F15MD - 1.5" or F20MD - 2". Filter element options are 50 microns, 5 microns or coalescing 0.01 microns. This filter complies with PED and can be supplied with ATEX certification for hazardous area duty.

Model F320: F315M 1.5" & F320M 2" Stainless Steel Filter

This item has been superseded by Model 320F2

The model F320 range of stainless steel filters from ID Insert Deal Srl are suitable for use on air, gas or liquids for pressures up to 30bar with the manual condensate drain for compressed air or 50bar with the hex cap on all other fluids. This filter unit is available in 2 sizes: F315M 1.5" or F320M 2" and NPT threads are optional. Filter element options are 50 microns or 5 microns, both in 316L stainless steel and there is an automatic drain option for compressed air duty up to a maximum of 16bar. This filter complies with PED and can be supplied with ATEX or EAC-Ex certification for hazardous area duty and MOCA EC 1935/2004 certification for use on food related processes.

Common fluids used with this filter are Oxygen (O2), Nitrogen (N2), Argon (Ar), Helium (He), Carbon Dioxide (CO2), Nitrous Oxide (N20), Compressed Air, Water and Hydraulic Oil. FDA approved seals are available for food and beverage compliance.
