Low Pressure Regulator Models R160, R4160 & R3160

Model R160 Aluminium Regulator 1/2" x 3/4" 5-45mbar, 20-200mbar, 150-700mbar

Model R4160 Aluminium/316L Regulator 1/2" x 3/4" 5-45mbar, 20-200mbar, 150-700mbar

Model R3160 Stainless Steel Regulator 1/2" x 3/4" 5-45mbar, 20-200mbar, 150-700mbar

Model R160 Aluminium Regulator 1/2" x 3/4"

Ranges: 5-45mbar, 20-200mbar, 150-700mbar

The model R160 aluminium pressure regulator from ID Insert Deal Srl is suitable for use on compressed air or gases for inlet pressures up to 6bar. The regulator has a balanced main valve and diaphragm and is a non-relieving design. This compact regulator has 1/2" inlet and 3/4" outlet with 1/4" gauge ports. Outlet pressure range: 5-45mbar, 20-200mbar or 150-700mbar. This regulator complies with PED and ATEX or EAC-EX certifications are available for potential explosion hazard areas.

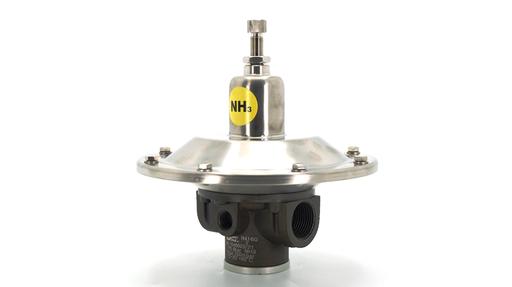

Model R4160 Aluminium/316L Regulator 1/2" x 3/4"

Ranges: 5-45mbar, 20-200mbar, 150-700mbar

The model R4160 aluminium pressure regulator from ID Insert Deal Srl has 316L stainless steel internal parts and is suitable for use on compressed air or gases for inlet pressures up to 6bar. This regulator is recommended for use on Ammonia NH3 and other gases such as N2, He, Ar, H2, C3H8, CH4, CO2 and N2O. The regulator has a balanced main valve and diaphragm and is a non-relieving design. This compact regulator has 1/2" inlet and 3/4" outlet with 1/4" gauge ports. Outlet pressure range: 5-45mbar, 20-200mbar or 150-700mbar. This regulator complies with PED and ATEX or EAC-EX certifications are available for potential explosion hazard areas.

Model R3160 Stainless Steel Regulator 1/2" x 3/4"

Ranges: 5-45mbar, 20-200mbar, 150-700mbar

The model R3160 316L stainless steel pressure regulator from ID Insert Deal Srl is suitable for use on compressed air or gases for inlet pressures up to 6bar. The regulator has a balanced main valve and diaphragm and is a non-relieving design. This compact regulator has 1/2" inlet and 3/4" outlet with 1/4" gauge ports. Outlet pressure range: 5-45mbar, 20-200mbar or 150-700mbar. This regulator complies with PED and ATEX or EAC-EX certifications are available for potential explosion hazard areas and MOCA EC 1935/2004 certification for use on food related processes.

Not sure which valve or measurement solution is best?
Use our experience to guide you...

For a deeper understanding of which valve or instrument would be best for you please call or email us now so that we can save you time and ensure you can make a truly objective decision for your company.
